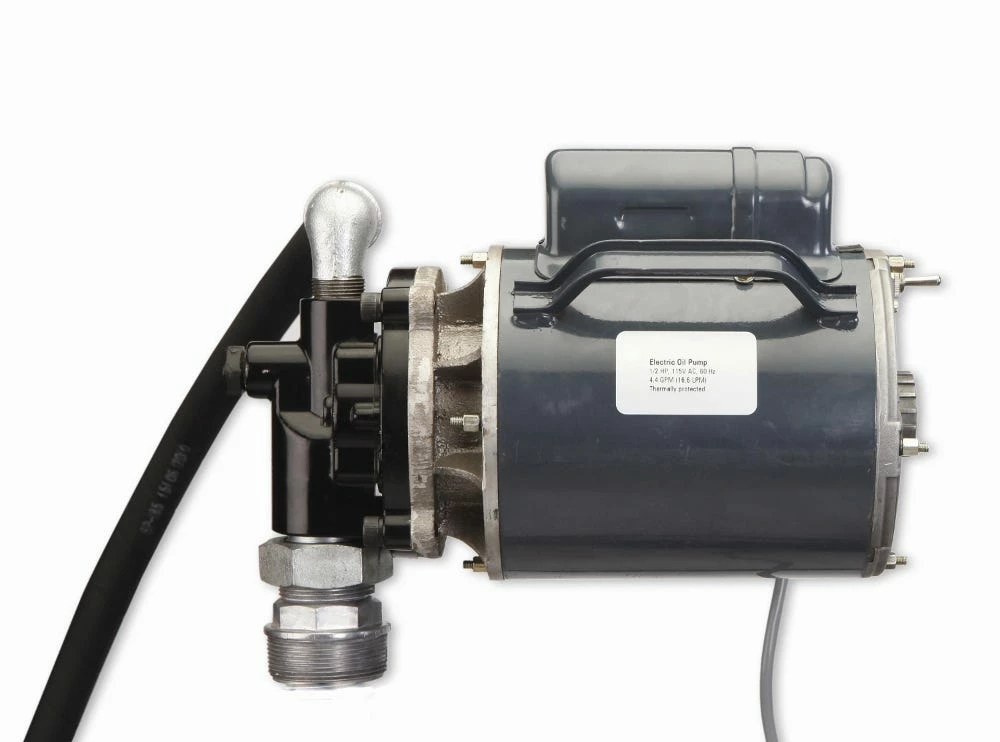

115-Volt A/C Electric Oil Pump. Heavy Duty Oil pump designed specifically to transfer bulk oils, hydraulic fluid, antifreeze or antifreeze mixes.
Featured:
- Non corroding Aluminum Die cast pump body
- A high horsepower to flow ratio assures adequate power to pump viscous fluids at low temperatures
- Sintered Powder Metal Gears
- Self priming, positive displacement design
- Pump has an internal bypass valve to bypass flow, if the discharge pressure exceeds the bypass valve setting
- Built-In 2” Bung Adaptor for mounting on drums/ tanks
- Air Cooled Motor with Thermal Protection
- Can be used to transfer used oil with a screen fitted onto the Suction Tube
- UL listed frame & motor components
WETTED COMPONENTS
Aluminum, Steel, Cast Iron, Nylon, NBR, Zinc, Polypropylene, PVC
RECOMMENDED USE
Oils, Synthetic Oils, Antifreeze, Used Oil, Hydraulic Fluids, Cutting Oils, Oil based Herbicides, Non Flammable Oil Based Solvents, Liquid Soap etc.
Specifications:
| Description | Heavy Duty 115V AC |
| Flow | 4 GPM (15.10 LPM) |
| Motor | 1/2 HP 115V AC, 60 Hz. |
| Amp | 9 Amp |
| RPM | 1720 |
| Construction – Pump Housing | Aluminum Die Cast |
| Mechanism | Gear Pump |
| Gear Material | Sintered Powder Metal |
| Internal Bypass Valve | Yes |
| Suction Pipe | 34” long PVC |
| Hose | 3/4” x 8’ |
| Bung Adapter | 2” Threaded |
| Inlet | 1” NPT |
| Outlet | 3/4” NPT |
| Dispensing Nozzle | Ball Valve |
| Power Cable | 30” (762 mm) |
| Air Cooled | Yes |
| Max. Viscosity of Oil | SAE 90 |
| Max. Working Pressure | 65 PSI (4.5 BAR) |
| Thermal Protection | Yes |
